Fieldpiece Compact HVACR Clamp Multimeter SC260 – True RMS Clamp Meter with Temperature, Capacitance & Backlight
Couldn't load pickup availability
Fieldpiece is the leading manufacturer of professional-grade tools for the HVACR industry, delivering quality instruments industry pros trust to help them do more, every day.
As the only company solely dedicated to creating tools and test instruments for HVACR professionals, Fieldpiece Instruments is an international powerhouse known for solving real-world industry problems with its rugged, feature-rich tools – precision-engineered for HVACR pros, by HVACR pros.

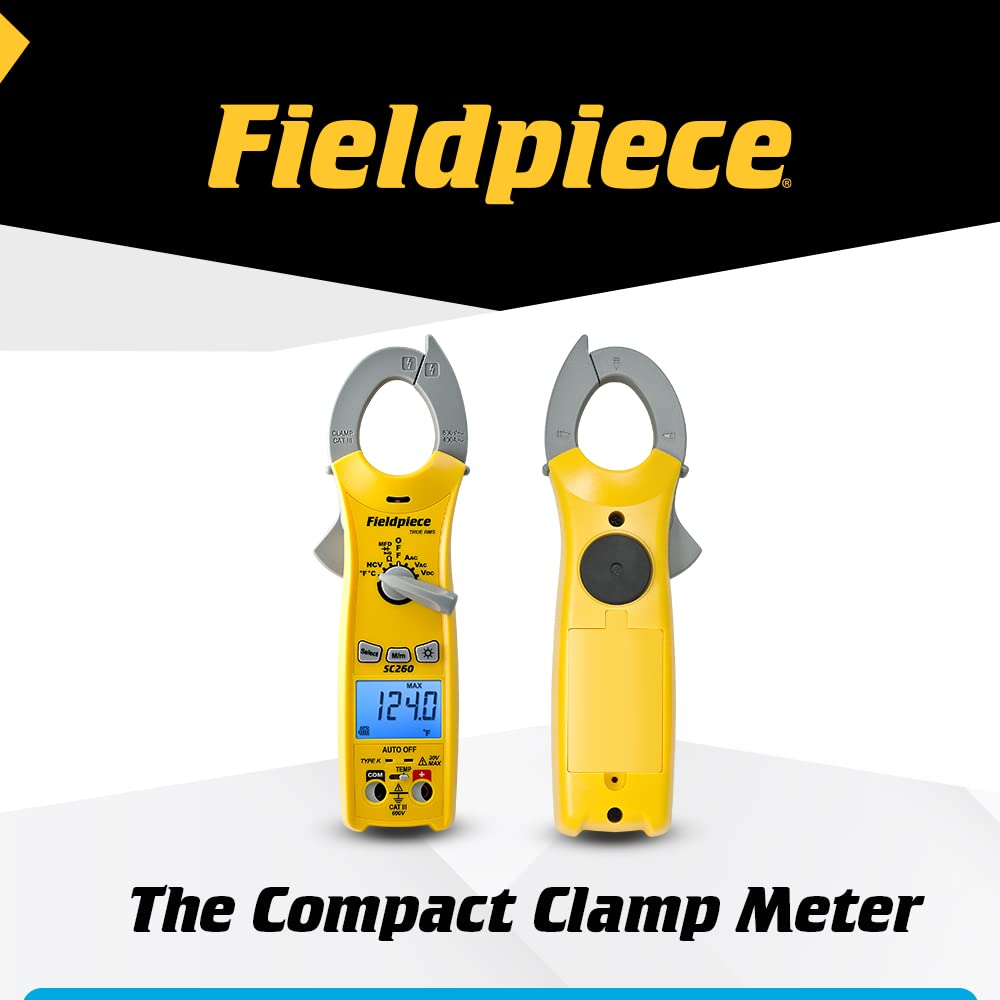

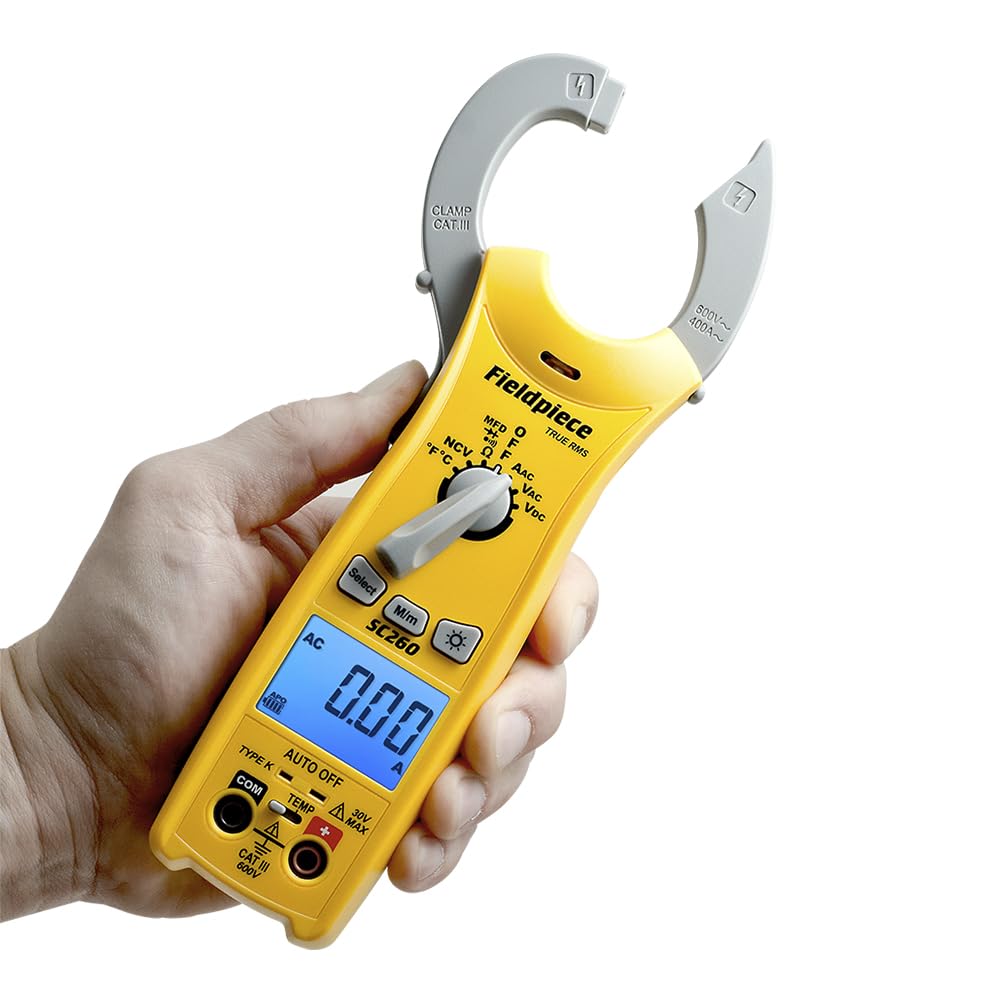

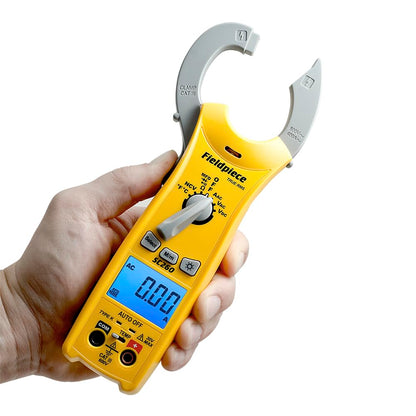

Fieldpiece Compact Clamp Meter - SC260
True RMS Clamp Meter with Temperature, Capacitance & Backlight
Fieldpiece compact clamp meter is great for testing HVACR electrical measurements. It helps save time with the auto Select mode. Simply set the dial and connect your leads. The clamp meter will automatically select the appropriate measurement depending on what it detects. While the high temperature resistance allows you to move from a cold freezer to a hot rooftop and get accurate temperature measurements that lesser thermometers cannot measure properly.
- True RMS, Capacitance, & Continuity
- Auto Select mode
- Backlit Display
- Silicone lead set with Molex tips
- Non-contact voltage (NCV)
Compact HVACR Clamp Meter with True RMS
The SC260 Compact Clamp Meter is a great meter for testing HVACR electrical measurements. It includes True RMS measurements so you can test variable frequency drives more accurately, along with temperature in both Fahrenheit and Celsius. The SC260 also features a backlight display for reading measurements in poorly lit places, and a sturdy swivel magnet for hands free measurements.
The SC260 helps you save time with the Auto Select mode. Simply set the dial and connect your leads. The clamp meter will automatically select the appropriate measurement depending on what it detects.
Fieldpiece's compact SC260 clamp meter is ideal for all types of electrical HVACR testing. The backlit display makes it easy to view all readings – even in low light – and the non-contact voltage indicator makes electrical testing safer. Each clamp meter provides measurements HVACR professionals need to perform at their highest level, such as fast temperature readings, and has a rugged, durable casing that stands up to working conditions on the job.
Volts AC/DC
True RMS
400 Amps AC
Temperature F/C
Capacitance
Non-contact voltage
40 Mega Ohm with 0.01 resolution
Continuity
Diode Test
With True RMS, temperature readings, capacitance, and backlit display, Fieldpiece SC260 provides professionals with all the tools needed every day. The SC260 clamp meter is built to withstand the rigors of HVACR with high impact plastic casing and a display that can be read in hot or cold environments. This allows technicians to quickly and easily move from a cold freezer to a hot roof top and get accurate temperature measurements.
SC260
|
SC440
|
SC480
|
SC640
|
SC880
|
|
|---|---|---|---|---|---|
|
|
|||||
| Customer Reviews |
1,478
|
824
|
155
|
287
|
—
|
| Price | $149.60 | $219.30 | $347.65 | $268.60 | — no data |
| Job Link App Compatible | no data | no data | ✓ | no data | ✓ |
| Power (KW & PF) | no data | no data | no data | ✓ | ✓ |
| Display Counts | 4,000 | 5,000 | 10,000 | 10,000 | 10,000 |
| VAC/VDC | 600 VAC/600 VDC | 600 VAC/600 VDC | 750 VAC/1000 VDC | 600 VAC/600 VDC | 750 VAC/1000 VDC |
| AAC/SDC | 400AAC | 400AAC | 600AAC | 400AAC | 600AAC/600ADC |
| MicroAmps DC | Up to 500 | Up to 1000 | Up to 500 | Up to 1000 |

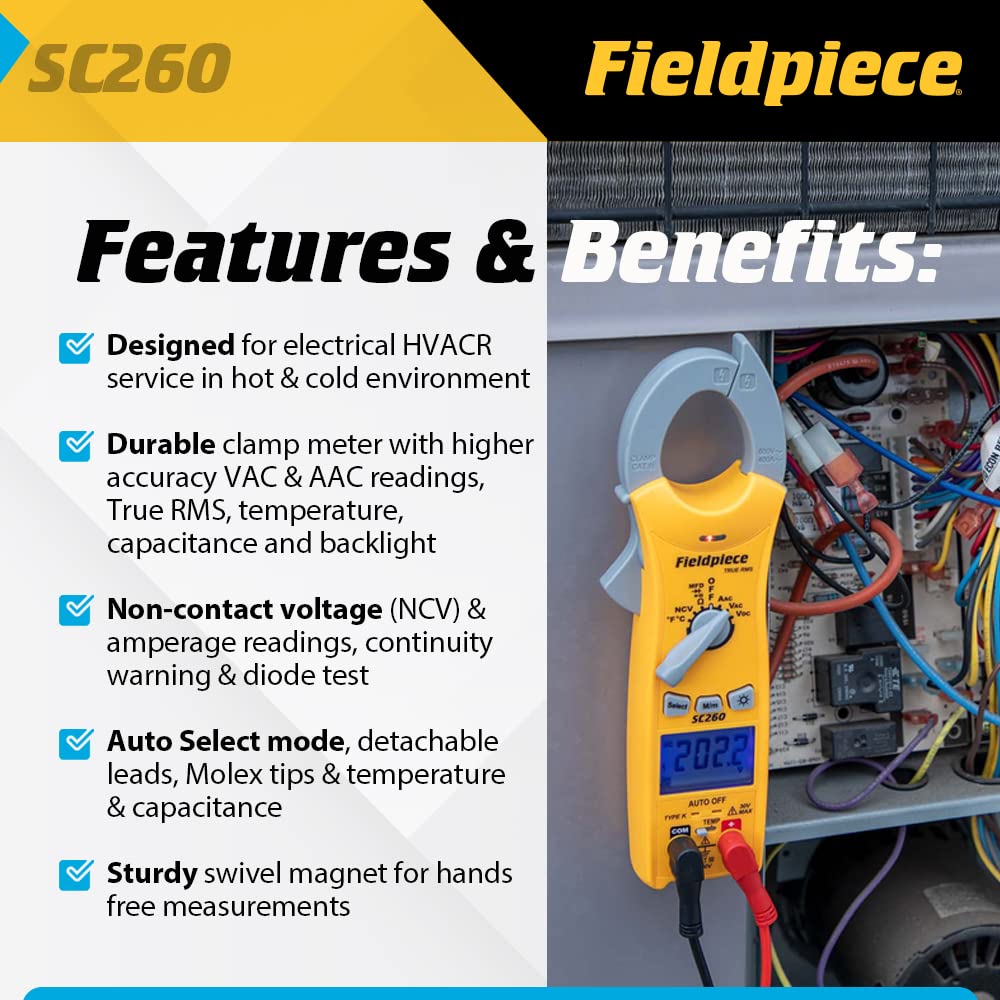

- Compact clamp meter SC260 is designed for electrical HVACR service in hot & cold environment
- Durable clamp meter with higher accuracy VAC & AAC readings, True RMS, temperature, capacitance and backlight
- Non-contact voltage (NCV) & amperage readings, continuity warning & diode test
- Auto Select mode: Meter automatically detects when measuring capacitance or resistance measurements.
- Sturdy swivel magnet for hands free measurements
| Brand | Fieldpiece |
| Power Source | Battery Powered |
| Style | Voltage Tester |
| Item Weight | 0.01 Ounces |
| Item dimensions L x W x H | 3.5 x 3 x 9.1 inches |
