Fieldpiece Dual-Port Manometer - SDMN5
Couldn't load pickup availability

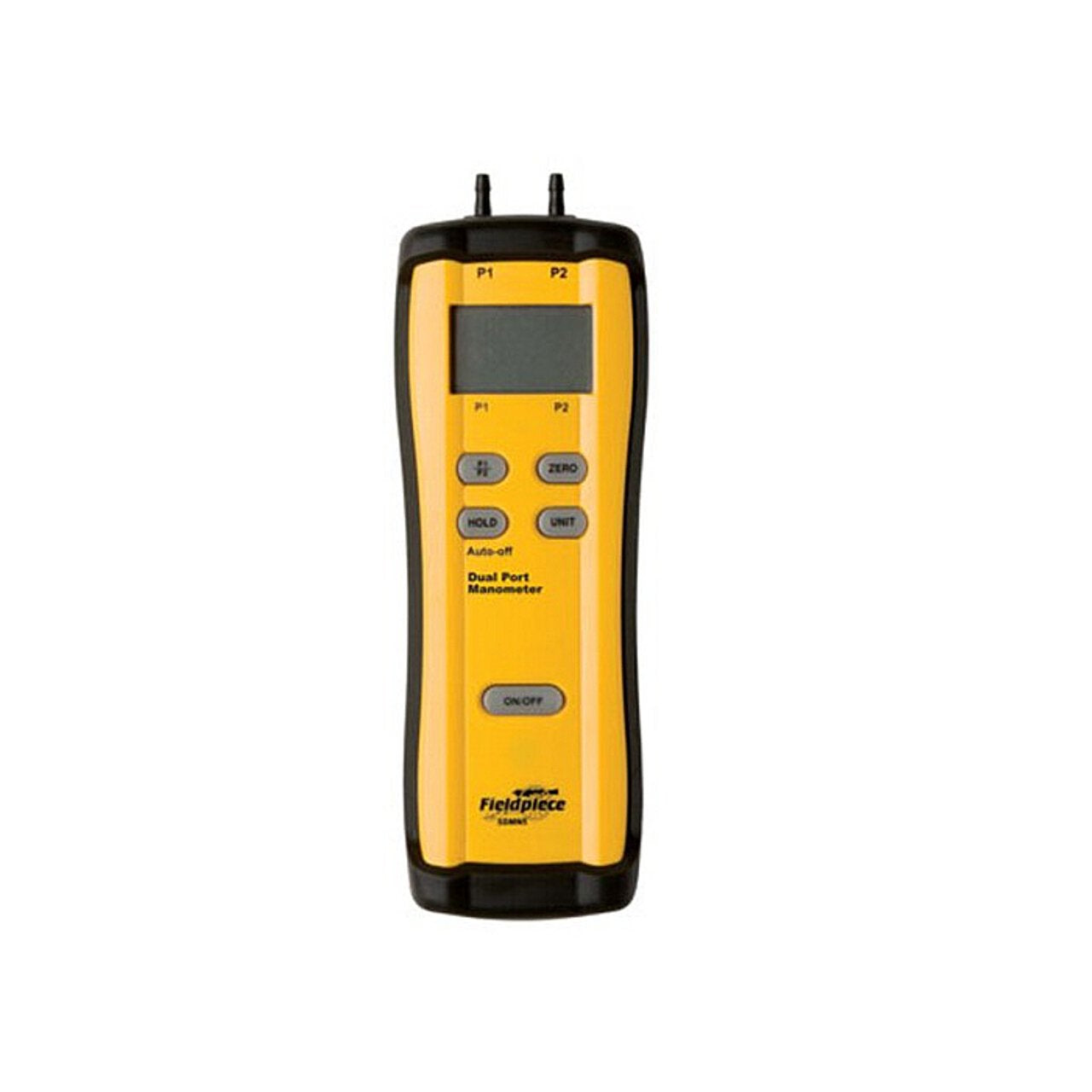

The SDMN5 is a portable, rugged dual-port manometer designed especially for HVAC/R field service technicians. Measures gas pressure, static pressure and pressure differential. The SDMN5 includes a zero adjust button of the face of the meter, a rugged rubber boot, a magnet on the back for hanging the meter during service, and the Auto Power-Off (APO) function conserves battery life. The SDMN5 measures pressure between -60inWC and 60inWC (Inches of water column) and -150.0 to 150.0 mBar. The SDMN5 also measures P1 or P2 pressure readings and calculates the difference between P1 and P2. Take static pressure measurements using the resolution mode of 0.01inWC or 0.01mBar. Includes 3/16” to 5/16” adapter for measuring gas inlet and outlet pressures.
- Dual-Port Manomete
- 2 3/16-Inch tubes with brass fittings.Measure duct pressures to balance air flow.-60.0" WC to 60.0" WC range
- 2 3/16-Inch to 5/16-Inch tube adapters - RMA316. Resolution down to 0.01" WC for static pressure measurement
- 9-Volt battery (installed)
- Operator's manual
| Brand | Fieldpiece |
| Material | Metal, Rubber |
| Item dimensions L x W x H | 2.5 x 1.25 x 7.25 inches |
| Item Weight | 6.9 Ounces |
| UPC | 767654119457 696335208589 872641001674 610373673864 033584958382 |
